Descripción
Velocidad de transmisión Inalámbrica de 300Mbps ideal tanto para las tareas sensibles a banda ancha y trabajo básico
Fácil encriptación de seguridad con sólo presionar el botón WPS
El Control de Banda ancha basada en IP permite que los administradores determinen cuánta banda ancha está distribuida a cada PC
El puente inalámbrico WDS proporciona un conexión de enlace sin interrupción para expandir su red inalámbrica
CARACTERÍSTICAS DE HARDWARE:

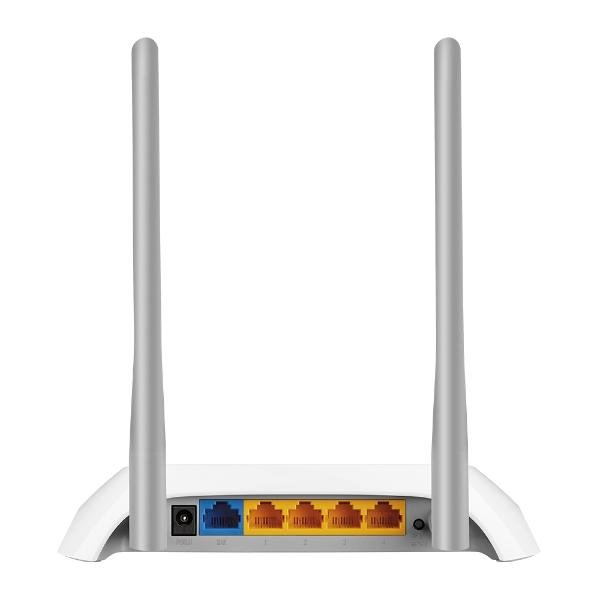

Interfaz 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Botón WPS/RESET Button

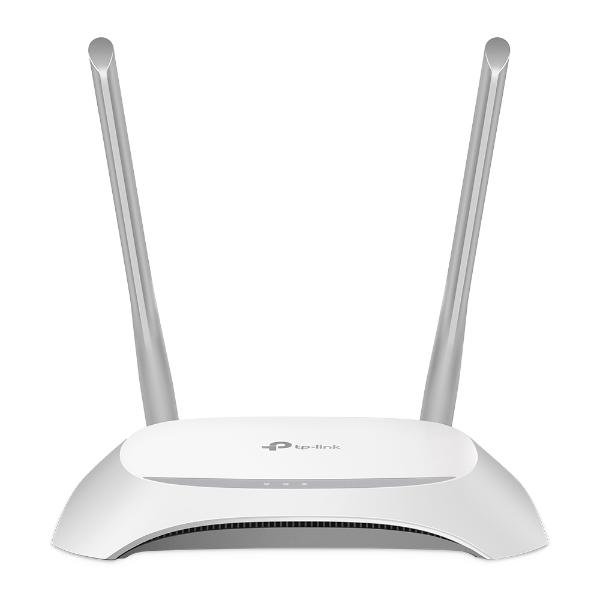

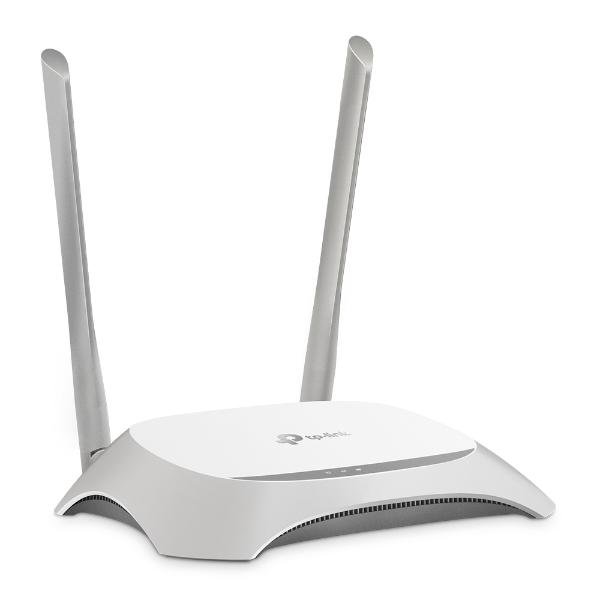

Antena 2 Antennas
Fuente de Alimentación Externa 9VDC / 0.6A
Estándares Inalámbricos IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensiones (W X D X H) 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm)
CARACTERÍSTICAS INALÁMBRICAS:
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power CE:
<20dBm
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK
CARACTERÍSTICAS DE SOFTWARE:
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols Support IPv4 and IPv6
Guest Network 2.4GHz Guest Network x1
OTHERS:
Certification CE, RoHS

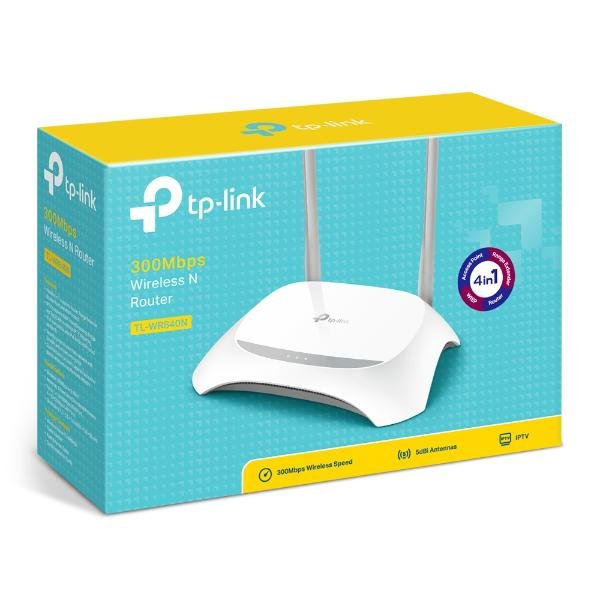

Package Contents Wireless N Router TL-WR840N
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system
Environment Operating Temperature: 0¿~40¿ (32¿~104¿)
Storage Temperature: -40¿~70¿ (-40¿~158¿)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
